Máy in tem nhãn mã vạch

*Không cần điều chỉnh đầu in cho những vật liệu có kích thước khác nhau
*Con lăn in cho các vật liệu hẹp và mỏng
*Vận hành và điều khiển đều tương thích với các dòng máy in A+ series

Label printer	A4+M
Printable resolution dpi	300	600
Print width up to mm	105.6	105.6
Print speed up to mm/s	125	100

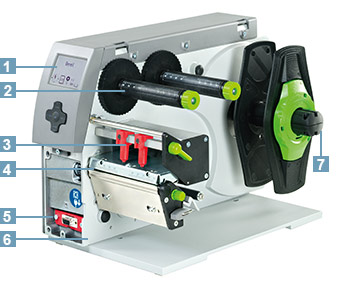

1. Wide graphic display
White backlight for optimum readability.

2. Ribbon holder
Simple, centered insertion of the ribbon with three-part tightening axles. Imprinted rule simplifies ribbon positioning.

3. No print head adjustment
The print head is pressed down by two toggles. Due to centered material positioning there is no need to do print head adjustments and settings

4. Material positioning
High printing accuracy as the material is located directly behind the print roller. Width adjustment with a single knob.

5. Peripheral connection
Add-on modules such as cutter, perforation cutter and stacker are easy to connect.

6. Solid metal housing
Die-cast aluminum. All components are mounted on it.

7. Roll holder
Available for core diameters starting 38 mm (76 mm adapters for improved label winding are provided). The material is automatically centered. The spring-mounted margin stop ensures constant tension during feeding, thus ensuring high printing accuracy.

Standard Optionally

Label printer	A4+M
Print head
Print method thermal transfer
Print method thermal direct		-
Printable resolution dpi	300	600
Print speed up to mm/s	125	100
Print width mm	105.6	105.6
Material	Paper, cardboard, textile, plastics
Labels or continuous materials on rolls or fanfold
Labels on reel
Material thickness mm / weight g/m²	0.05-0,8 / 60-300
Width labels¹⁾ mm	4-106
Width liner mm	10 - 110
Width continuous material mm	4-110
Width contin. heat shrink tube mm	4-85
Label height¹⁾ without back-feed from mm	5
Label Height¹⁾ up to mm	4,000	1,000
Media roll outer diameter up to mm	205
Media roll: core diameter mm	38-100
Media roll: winding	Outer or inner
Ribbon
Ink side	Outer or inner
Roll diameter up to mm	80
Core diameter mm	25
Variable length up to m	500
Width²⁾ up to mm	114
Dimensions and weights
Height mm	274
Depth mm	446
Width mm	242
Weight kg	9
Label sensor
Gap sensor	For leading edge or punch marks and end of material
Reflective sensor from bottom/optionally from top	For print marks
Distance center to the left mm	0-53
Electronics
Processor 32 bit clock rate MHz	266
Main storage (RAM) MB	64
IFFS printer memory MB Flash	8
Plug-in CompactFlash Type I
Plug-in WLAN card
Battery buffer for real-time clock
Acoustic error signal
Interfaces
Centronics according to IEEE 1284
RS232 C
USB 2.0 hi-speed slave for PC
Ethernet 10/100 Base T, LPD-, RawIP-, FTP-Printing, DHCP, HTTP, SMTP, SNMP, TIME, Zeroconf, mDNS, SOAP
RS422/RS485
Peripheral connection
WLAN 802.11b/g WEP/WPA-PSK (TKIP)
2xUSB hosts for external operation panel, keyboard, scanner, service key, USB stick
Operating data
Power supply	100-240 V ~ 50/60 Hz, PFC
Power consumption W	100-300 depending on type of printer
Temperature/humidity operation	5-40°C/10-85% not condensing
Temperature/humidity stock	0-60°C/20-80% not condensing
Temperature/humidity transport	–25-60°C/20-80% not condensing
Approvals	CE, FCC class A, CB, CCC, UL

Accessories for label printer A4+M

Cutter

Used to cut paper labels, self-adhesive labels, cardboard, textile or synthetic materials as well as heat shrink tubes.

Perforation cutter

Enables the perforation of the material for later manual separation.

Stacker with cutter

Printed materials are cut and stacked. The print job is stopped as soon as the maximum stack height is reached. Even stiff or curved materials may be processed. We recommend to have your material tested at our facilities.

Print rollers for small and thin materials

Outside the material width the printhead rubs against the print rollers. By using small print rollers feeding errors and wear on print head and print roller due to rubbing are avoided. Three different standard widths are available from stock.

Cutter CU, Cutter tray

Cutter CU
Used to cut paper labels, self-adhesive labels, cardboard, textile or synthetic materials as well as heat shrink tubes.

Cutter tray
Up to about 50 labels may be collected in the cutter tray.

Cutter	CU2	CU4		CU6	CU8
Usage	A2+	A4+	A4+M, A4+T XD4T, XC4	A6+, XC6	A8+
Material width up to mm	67	120	110	180	232
Material weight cardboard gr/m²	60-300
Material thickness mm	0.05-0.8
Cutting length mm	>5
Gap height up to mm	2.5
Cuts/min.	130	120		110	100
Stop print job	When final position of cutter is not reached
Cutter tray 4 for A4+/A4+M
Label height up to mm	100
