Ensure your workers are equipped with the tools they need to get the job done efficiently and effectively in extreme environments with the 8585 and 8595 rugged vehicle-mounted computers. Designed and built for the tough demands of such environments as warehouses, ports, manufacturing plants and airports, these rugged vehicle-mounted computers are compact and still provide full PC functionality with a Windows® XP or Windows® 7 operating system.
Compact design
The 8585 and 8595 take up very little space. Their thin design makes it simple to mount wherever space is available in your vehicle. The compact dimensions of the 8585 and 8595 ensure your workers have access to their computer when needed without it getting in the way while performing other tasks.
Fast and reliable communication
Even in demanding WLAN networks, the 8585 and 8595 ensure that you are always connected with the rest of the team. Featuring an integrated diversity-antenna space diversity and 802.11 a/b/g/n WLAN, they provide reliable communication and fast throughput.
Extreme ruggedness
The 8585 and 8595 have been tested on strict standards for shock and vibration. Their IP66 rating means they are protected against vibration, dust and other impacts. Whether mounted to non-suspension vehicles or machines with substantial imbalances, the 8585 and 8595 will keep providing workers the support they need.
Mobile technology
Built with the Intel Atom® processor — the latest in mobile technology — the 8585 and 8595 consume minimal power but still operate quickly due to their 1.1 GHz processor speed.
Display
Standard display
8585: SVGA 800 x 600; 10.4” diagonal; LED Backlit; Sunlight Readability Option; 8595: XGA 1024 x 768; 12.1” diagonal; LED Backlit
Physical characteristics
Indicators
Power on LED; temperature warning; mass storage activity
Keypad
Multiple keyboards available including the color option with 72 keys and the 82-key option with integrated backlighting
Dimensions
8585: 9.1 in. L x 11.2 in. H x 3.1 in. D (229 mm L x 285 mm W x 78 mm D) 8595: 10.1 in. L x 12.8 in. H x 3.1 in. D (258 mm L x 325 mm W x 79 mm D)
Touchscreen
Resistive touch
Weigh
8585: 6.6 lbs. / 3 kg 8595; 7.7 lbs. / 3.5 kg
Power
Power supply
12-24 VDC or 24-48 VDC internal power supply; Voltage sags up to 5 VDC can be handled for up to 20 seconds
System characteristics
Operating system
Windows® XP Embedded, Windows® Embedded Standard 7, Windows® XP Professional, Windows® Professional
CPU
Intel Atom® (Single Core) 1.1 GHz AMD G-T40E (Dual Core) 1.0 GHz
I/O interfaces included
1 x RS-232; 2 x USB 2.0 host; 1 x Service USB 2.0; 1 x Speaker/Mic LAN: RJ45 10/100/1000 Mbps
Memory
1GB RAM with Intel; 2 GB RAM with AMD; Starting at 4 GB CFast Flash ROM; Up to 16 GB CFast Flash ROM
Audio
Integrated speaker; speaker/Mic via handset (option)
User environment
UV
Per MIL-STD 810F (US Highway Truck)
Shock/vibration
Class 5M3 according EN 60721-3-5
Storage temperature
-31° to 149° F/-35° to 65° C
Environmental sealing
IP66 (water & dust protection)
Humidity
Humidity (operating): 10% to 90% at 40° C, non-condensing
Operating temperature
-22° to 122° F/-30° to 50° C
Wireless data communications
Wireless LAN
IEEE 802.11a/b/g/n; PCIe MiniCard
CA1210

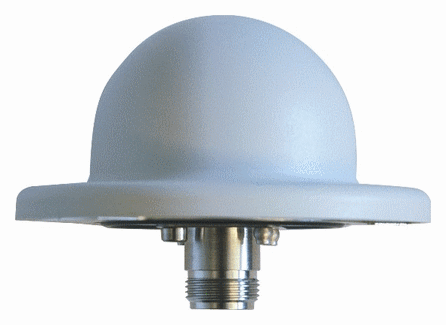

Antenna AN1010
