| Category |
Details |
| Optical & Performance |

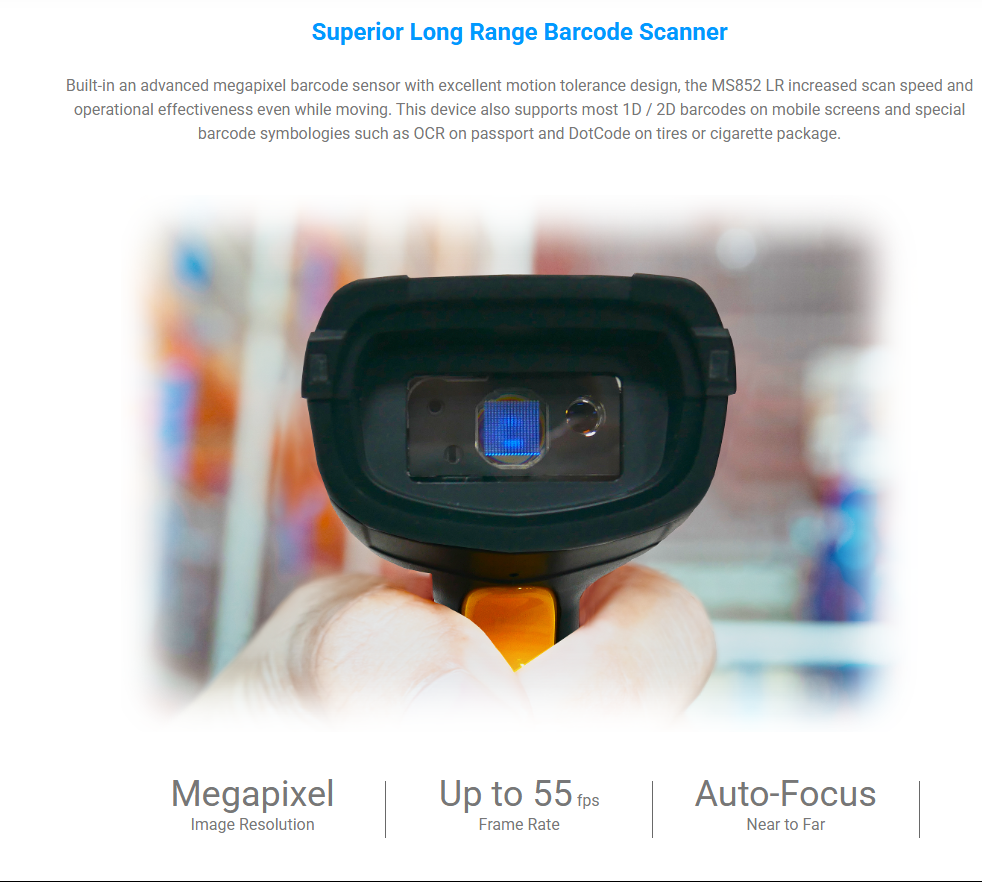

Sensor: 1280 x 800 global shutter
Aiming Element: 655nm
Illumination: Hyper Red 660nm
Ambient Light: 10,000 ft. candles (107,639 lux)
Skew Angle: ±60°
Pitch Angle: ±60°
Roll Angle: 0 - 360°
Optical Resolution: 3.0 mil (Code 39), 5.0 mil (PDF417)
Printing Contrast Scale: 25%
|
| Communication |
Radio: Corded
Host Interface Supported: USB
|
| Mechanical |
Dimension: 87.8 L x 71.6 W x 177.7 H (mm)
Weight: 184g without cable
Trigger Switch Life: 10 million times
|
| Functionality |
Operation Mode: Trigger Mode, Presentation Mode
Symbologies: 1D & 2D Barcodes, Special Barcodes
Data Formatting: Prefix, Suffix, Code ID, Reformatting Date
|
| Electrical |
Operation Voltage: 4 VDC to 5.5 VDC
Current Consumption: Operating: 710mA, Standby: 79mA
Indicator: Buzzer, LED
|
| Environmental |
ESD Protection: Functional after 8K Contact and 15K Air
Mechanical Shock: 1.8M onto concrete (2.2M with protection case)
Operating Temperature: -20°C to 50°C (-4°F to 122°F)
Storage Temperature: -40°C to +70°C (-40°F to +158°F)
Relative Humidity: 95% non-condensing
IP Rating: IP42
|
| Accessories |
■ Hand Free Stand
■ USB Cable
■ Desktop Stand
■ Power supply for RS232 cable
|
| Regulatory Approvals |
CE, FCC, BSMI, VCCI, TAA Compliant |
| What Comes in the Box |

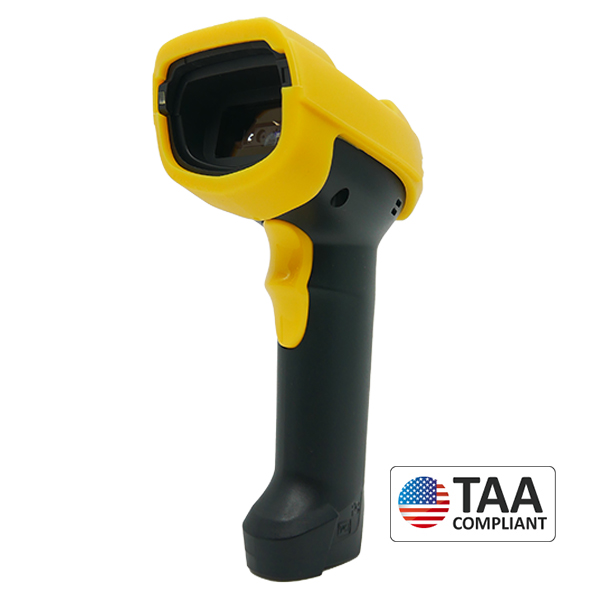

■ MS852 LR Scanner
■ USB Interface Cable
■ Y Cable
|
| Warranty |
Hardware Warranty: 60 months
|
