Workabout Pro4

Give your workers the mobile computer that can continually evolve to meet your ever-changing business needs with the Workabout Pro 4. Its modular design lets you buy the features you need now, and easily add new features later in your own facility.

Start with Wi-Fi and add WWAN. Swap scan engines to support new types of barcodes. Add support for voice picking applications and just about any type of RFID tag. Many ready-to-use modules are available to meet the highly specialized needs of diverse vertical markets. And since the Workabout brand has been serving businesses for over 20 years, you can choose the well-proven Workabout Pro 4 with confidence.

Impressive modularity for an extraordinary life cycle and a low TCO
The Workabout Pro is built using modular design principles, enabling you to choose the features you need today and upgrade almost all key features tomorrow by simply changing the modules. Add a new scan engine; a camera; LF, HF or UHF RFID as well as Wi-Fi, cellular and GPS, plus a wide variety of additional options available through our partners.

Boost productivity with superior application performance
With triple the Flash, double the RAM and almost double the processing speed of the prior generation, you get extraordinary performance on all applications.

A high-resolution color 8 MP camera for a world of new applications
With the ability to take sharp, detailed photos, workers can capture indisputable proof of delivery, document damaged product, confirm repair completion and obtain on-the-job assistance from a remote product expert or assistance ordering the right parts.

Comprehensive support for speech-enabled applications
Supports speech-enabled applications, boosting productivity and accuracy in warehousing applications.

The flexibility to choose the right model for every job
Choose the size that best fits the job as well as each worker — short or long. Workers can easily attach a pistol grip to bring comfort to scan intensive tasks, such as inventory cycle counts.

Backwards compatibility with accessories
All of your existing Workabout Pro charging accessories and a majority of the partner modules will work with the Workabout Pro 4, allowing you to easily and cost-effectively upgrade to the latest mobile technologies.

Communications

WLAN radio type
802.11a/b/g/n; optional diversity antenna module available

WWAN radio type
Optional UMTS/HSPA+ WAN radio (data only in the Americas1) with GPS receiver (supports AGPS, GLONASS and SBAS)

WPAN (Bluetooth Support)

Integrated Bluetooth® V2.0 + EDR

GPS
Optional GPS/Wi-Fi Diversity Antenna Module (supports AGPS and SBAS)
WLAN WLAN Data Rates:
802.11a – up to 54 Mbps
802.11b/g – up to 54 Mbps
802.11n @ 2.4 GHz – up to 72.2 Mbps
802.11n @ 5 GHz – up to 72 Mbps

WLAN Security:
WEP (40 or 104 bit); WPA/WPA2 Personal; WPA/ WPA2 Enterprise – EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, EAP-FAST, TKIP, AES

Data Capture Options

Scanners

1-D SE965 standard range laser; 1-D SE1524ER extended range laser; 1-D SE655 standard range linear imager; 2-D SE4500 imager

NOTE: All scan engines are available factory configured or user installable as either an end cap or slim pod.

Performance Characteristics

Processor (CPU)
Sitara™ AM37x ARM Cortex™ A8 1Ghz processor

Memory
512 MB RAM / 4 GB Flash

Operating system (OS)
Microsoft Windows Embedded CE 6.0, Windows Embedded Handheld 6.5

Applications
Bundled Applications: Internet Explorer®; Wordpad®; ActiveSync®; Microsoft Office (WEHH 6.5 only)
Additional Software: Kiosk; MobiControl; Total Recall/TweakIt/Dr. Debug; A.R.C.; Windows® Mobile Device Center Terminal Emulation: TekTerm; Wavelink TE

Physical Characteristics

Camera
Optional color, 8 MP, autofocus, 4X digital zoom, Bright
LED
flash, video capable

Dimensions (HxWxD)

Long: 8.78" x 2.95"/3.94" x 1.22"/1.65" (223 mm x 75/100 mm x 31/42 mm)
Short: 7.87" x 2.95"/3.94" x 1.22"/1.65" (200 mm x 75/100 mm x 31/42 mm)

Weight

Long: 18.6 oz / 526 g
Short: 16.2 oz / 461 g

Keypad options

Alpha Numeric (long models)
QWERTY or Numeric (short models)
High reliability keypad ultra-white backlight
Display type
3.7 in VGA/QVGA (640 x 480), transflective color; touch display; Sunlight visibility with 240 cd/m² brightness
Voice, Speech and Audio
Voice over WWAN1; Push-to-Talk – Voice over Wi-Fi (VoWiFi) capable1; optional headset adapter module to support speech picking applications; integrated microphone and receiver with high volume 86dBA beeper (95dBA beeper with extended range laser)

Power

Battery
PowerPrecision Lithium Ion batteries
Two options: High capacity 4400 mAh or standard capacity 2760 mAh

RFID

Module options
LF Module
Frequency: 125 kHz
Protocols supported: EM 4x02; EM 4x05; EM 4x50; EM 4200; Q5; Hitag 1 & 2; Hitag S

UHF Module* Frequency: 868 MHz or 915 MHzProtocols supported: EPC Class 1 Gen 2;ISO 18000-6C
HF Module Frequency: 13.56 MHz Protocols supported: ISO14443 type A, B and C, ISO 15693; NFC “Reader to Tag” Mode; fullMifare supportData encryption: 2 SAM slots; ID1 SAM format;Class A, B and C

User Environment

Environmental sealing
IP65

Operating temperature
-4°F to 122°F (-20°C to +50°C)

Storage temperature
-40°F to 140°F (-40°C to +60°C)

Humidity
5%-95% non-condensing

Drop specification
Multiple 5 ft. (1.5 m), 26 drops to polished concrete (powered with options and accessories); multiple 6 ft. (1.8 m) drops to polished concrete

Electrostatic discharge (ESD)
+/- 8kV contact, +/- 15kV air discharge

¹ In the Americas, the Workabout Pro 4 is not approved to be used with any VoIP application using Wide Area Network (WAN) or Wireless Local Area Network (WLAN)

1-D standard range laser: Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LE D3, 450 Ft. Candles (4, 844 Lux) Sunlight: 10, 000 Ft Candles (107, 640 Lux)

3 1-D extended range laser: Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED3: 450 Ft. Candles (4, 844 Lux) Sunlight: 8, 000 Ft Candles (86, 111 Lux)

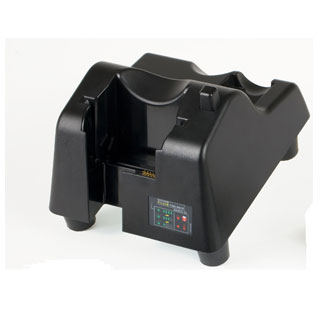

Single docking WA4003-G2
Single docking WA4003-G2.jpg

Quad docking station WA4204-G2
Quad docking station WA4204-G2.jpg
