VH10 / VH10F VEHICLE-MOUNTED COMPUTER

The VH10 is built to provide the real-time information your workforce needs to get the job done fast and done right – in warehouse aisles, out in the yard or in a freezer. You get productivity, ingeniously engineered — with all the features needed for truly flawless fulfillment in the most demanding environments.

Rugged for superior reliability in nearly any environment
Built to handle the constant pounding of material handling equipment inside and outside the four walls, with IP66 sealing, an IEC 60721-3-5M3 rating for shock and vibration that exceeds military standards (MIL-STD-810F), sealed connectors and more.

Backwards compatibility for cost-effective upgrades
Use the same mounts, accessories and applications you have today for your prior Zebra vehicle mount mobile computers, allowing you to cost-consciously upgrade to the latest technologies to improve productivity; customer service and satisfaction.

A tough, reliable touchscreen display for indoor and outdoor viewing
The automotive-grade 640 NIT ultra bright display is easy to read, even in bright sunlight; the 5-wire touchscreen is the most accurate and reliable touchscreen technology available.

Maximize uptime and minimize total cost of ownership with field serviceability
Replace the two elements that are most vulnerable to damage in minutes, right in your facility — the keyboard and touchscreen — no need to send to a service depot.

Flexible wireless connectivity options
Choose the wireless technology that best serves your environmental needs and your budget: 802.11a/b/g/n Wi-Fi only for compatibility with virtually any wireless LAN and plenty of bandwidth to support any application or combined Wi-Fi and Narrowband digital wireless for simple data transactions in expansive outdoor areas such as seaports, rail yards, airports and expansive outdoor yards in manufacturing plants.

Display

Standard display
8 in. color; 800 x 480; brightness 640 NIT; LED backlight; passive stylus or finger operation
Display Defroster (VH10f model): Heated touchscreen evaporates external condensation when moving out and in freezers

Physical characteristics

Mounting
Quick release mount; standard RAM mounts; adapters for legacy mounts, heavy duty mount, cantilever mount

Battery
Optional UPS Battery: Optional internal 5000 mAh rechargeable battery for operation during power loss/brown out provides up to 15 minutes session persistence during forklift battery swap.

Keypad
Integrated full alpha numeric keyboard with 67 keys; QWERTY and AZERTY; 12 direct function keys; LED; backlight

Dimensions
10.87 in. W x 9.37 in. H x 3.54 in. D (276 mm L x 238 mm W x 90 mm D)

Antenna
Internal or external 2.4 GHz and 5 GHz antennas

Touchscreen
Rugged 5-wire technology; optional heater

Weight
8.1 lbs / 3.66 kg (includes integrated UPS battery)

Power

Backup power
Standard 5 min super capacitor backup; one week real-time clock backup

Power supply
Internal power supply 12-48V Nominal, designed for forklift power

Regulatory specifications

Environmental
RoHS/WEEE/REACH compliant

Product flammability
IEC UL94-V0

WLAN and Bluetooth
USA: FCC Part 15.247, 15.407; Canada: RSS-210; EU: EN 300 328, EN 301 893

Electrical safety
UL/cUL/IEC/EN 60950-1 Indoor use

EMI/RFI
North America: FCC Part 15, Class B; Canada: ICES 003 Class B; EU: EN55022, EN 301 489-1, EN 301 489-17

System characteristics

Operating system
Windows(R) CE 6.0

CPU
TI OMAP3, 800 MHz

I/O interfaces included
Two USB host ports (one on the top, one on the bottom); One powered USB host port with 12V/1.5A; One 3.5 mm audio jack; Two full function UART RS-232 with 5V/1000mA for external device

Memory
512MB RAM/1 GB Flash

Terminal emulation
TekTerm, Wavelink, Stay-Linked, Naurtech

Audio
High volume 93dBA beeper; optional push-to-talk speaker/microphone

User environment

Integrated sensors
Motion (accelerometer)*; temperature, ignition

*Narrowband models do not support Motion Sensor (accelerometer).

Solar radiation
MIL STD810G, Method 505.5, Procedure II

Thermal shock
-22° F to +122° F/ -30° C to +50° C

Environmental sealing
IP66

Storage temperature
-22° to 140° F/-30° to 60° C

Shock/vibration
IEC 60721-3-5M3; MIL-STD 810G; Method 516.6, Procedure 1 – Functional

Salt fog
48 hours of 5% solution at 35° C

Electrostatic discharge (ESD)
±15kV air discharge, ±8kV direct discharge

Humidity
5% to 95% RH condensing with internal heating

Operating temperature
-22° to 122° F/-30° to 50° C

Wireless data communications

Narrowbanding
UHF bands: 403 – 470 MHz; Channel Spacing: 12.5 - 25 kHz; RF power: 500 - 1,000mW; Transmission speed: 4.8/9.6 kbps @ 12.5 kHz, 9.6/19.2 kpbs @ 25 kHz

Bluetooth
WPAN: Bluetooth® V2.0 + EDR

Wireless LAN
IEEE 802.11a/b/g/n

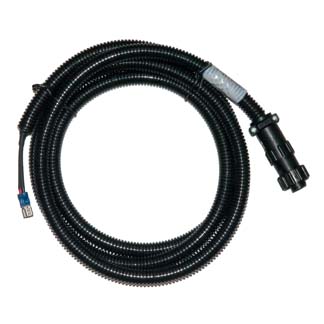

CA1210

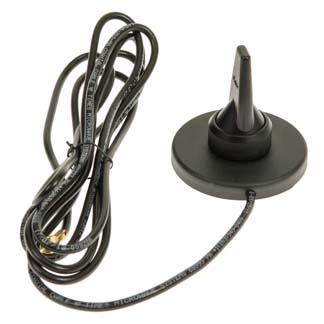

Antenna AN2010
Antenna AN2010.jpg

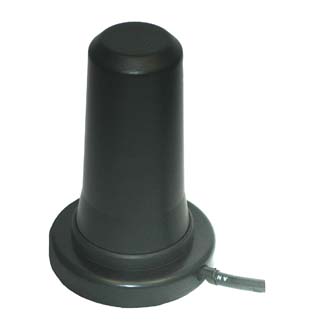

Anten 2.4Ghz, B,G - AN2020
