Unitech PA700 brings a new level of compact size, functionality and durable construction to an enterprise digital assistant. Not only delivering a slim device with stylish look, but also equipped with industrial-grade functions to meet the needs in mobile workforce. PA700 is an ideal portable tool to streamline work process in retail and field service.
Compact and elegant design
Unitech compact PA700 refined elegance to AIDC technology, with a slim form factor at weight of less than 270g (with battery) and stylish smooth round edges, PA700 is portable and easy to take around anywhere you go. In addition, a large 4.8-inch color TFT multi-touch display is a delight to watch and easy to operate by the two-finger gestures, it is available to be viewed even in direct sunlight, as well as a Gorilla® Glass screen with 7H hardness to keep it scratch free.
Versatile functionality
Packing a TI 1.5Ghz Dual Core Processor, DDR2 1GB SDRAM for system memory and 8GB NAND Flash for storage, PA700 also supports microSD expansion with an additional 32GB of storage capacity for data-intensive applications. Running on Android 4.1.1 Jelly Bean operation system, PA700 provides superior fast and smooth operation as well as combining 1D barcode scanning, UHF/HF RFID and 5.0MP auto focus camera in one handheld device, delivering maximum efficiency to users.
Advanced wireless connectivity
Equipped with advanced Bluetooth v4.0, GPS, Wi-Fi and wireless LAN 802.11 b/g/n tri-mode radios, PA700 enables wireless connections to other devices including servers, mobile computers and printers for the real-time data collections. Enterprise users can easily access information and accelerate their workflow while they’re on the go. Besides, featuring latest NFC communication, PA700 provides convenient short-range communication between electronic devices. It enhances the service levels in task transferring and identity asset management applications.
System Features
CPU | TI OMAP 4470 1.5Ghz Dual Core Processor |
Memory | 1GB Mobile DDR RAM 8GB eMMC Flash |
OS | Android 4.1.1 Jelly Bean |
Languages support | English, Simp. Chinese, Traditional Chinese, Japanese, Spanish, German, French |
Display
Size | Gorilla Glass II with 5-point capacitive touch panel 4.7" Color 450nits High Brightness Transmissive TFT 720x1280 dots IPS LCD |
Keypad
Sorts | 4 funtion keys, 2 scan keys, volume keys, power keys |
Indicator
Sorts | 1 LED indicate charge/Message Vibrator |
Symbologies
1D CCD Barcode scanner | 1D UPC-A/E, EAN-8/13, Codabar, Code 39, Code 39 full ASCI, Code 93,Code 32, Interleaved & Std. 2 of 5, EAN 128, Code 11, Delta, MSI/Plessey,Code 128, Toshiba, RSS expended, RSS Limited, RSS14. |
2D Imager | 1D All major codes 2D PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal Dutch Postal (KIX) |
Communication
Camera and Flash Light | 5MP CMOS Sensor Camera with Auto focus, LED flash light |
External storage | Support MicroSD memory card up to 32GB |
USB | USB 2.0 OTG |
WLAN | IEEE 802.11 b/g/n |
Bluetooth | Bluetooth 4.0 |
WWAN | GSM/GPRS/EDGE 850/900/1800/1900 MHzUMTS 850/900/1700/1900/2100 MHz WCDMA modem, HSPA+, DL: 21Mbps/ UL: 5.76Mbps. |
GPS | Yes |
Other Sensors | eCompass Light & Proximity sensor G-sensor |
RFID/HF (Optional) | Frequency: 13.56MHz Tag Support: ISO15693, ISO14443A , ISO14443B Support NFC |
Audio
Items | 1W speaker 85 dB at 10cm , 3.5mm Audio Jack, Receiver, Microphone |
Power Source
Main Battery | 11.91Wh 3.7V @3220mAh Li-Ion battery pack |
Enclosure
Weight | 285g (with battery) |
Dimension | 160mm x17.4mm x 80mm |
Environmental
Operating temperature | 14°F to 122°F (-10°C to 50°C) |
Storage temperature | -4°F to 140°F (-20°C to 60°C) |
Charging Temperature | 32°F to 104°F (0°C to 40°C) |
Relative Humidity | 5% ~ 95% ( non-condensing ) |
Drop test to Concrete | 1.2 meter |
Environmental Sealing | IP65 |
Vibration and Shock test | MIL-STD-810F, 514.4 process II |
Software
Software | Andriod 4.1.1 API level 16 |
Accessories
Items | Single Slot USB Client/Host Cradle with Single Slot Battery Charger Handstrap 3220mAH standard Battery MicroUSB Cable Power adaptor with universal plugs |
Regulatory Approvals
Types | CE, NCC, FCC, BSMI, VCCI, CCC, RoHS compliance |

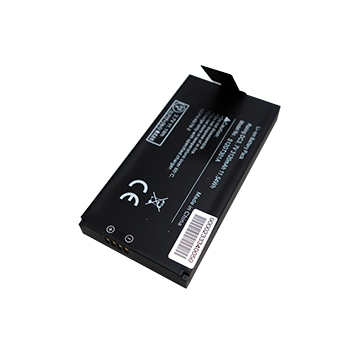

Battery (3000mAH Standard Battery)

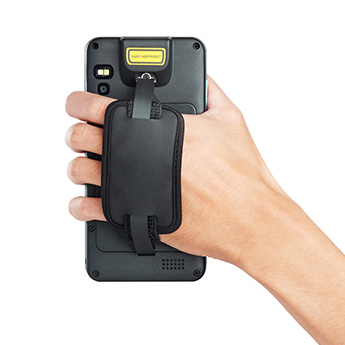

Handstrap

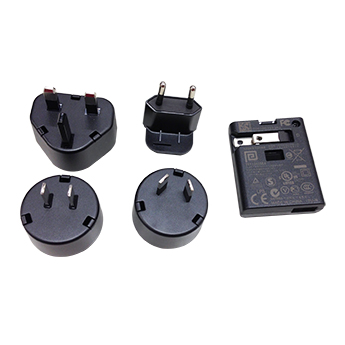

Power Adaptor with universal plugs

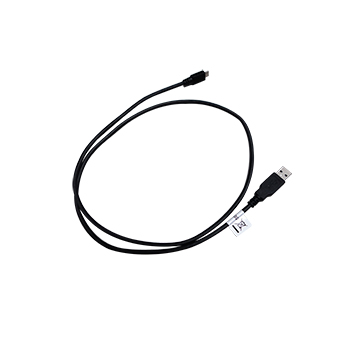

USB cable
